These half-wave antennas offer 4dB of gain for your low and medium power radios, and are capable of up to 20W transmissions. 406-430 MHz and 440-470 MHz product variations are tuned to provide optimal performance for a wide range of frequencies.
| Frequency Range | 406 – 430 or 440 – 470 MHz |
|---|---|
| Antenna Connector | TNC male |
| Antenna Gain | 4dB |
| Impedance | 50 Ω |
| Maximum Load | 20 W |
| Antenna Length | 33 cm (403-430 MHz), 30 cm (440-470 MHz) |
| Weight | 55 g (403-430 MHz), 50 g (440-470 MHz) |

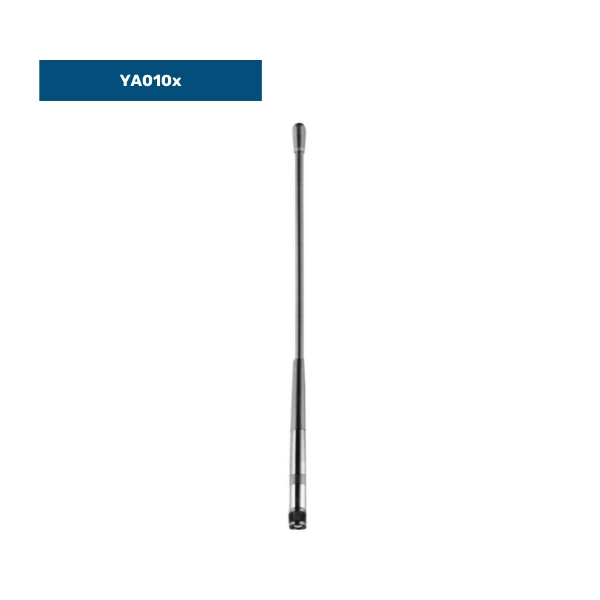

YA0103: Gainflex 1/2 wave antenna, 440-470 MHz
YA0106: Gainflex 1/2 wave antenna, 403-430 MHz
