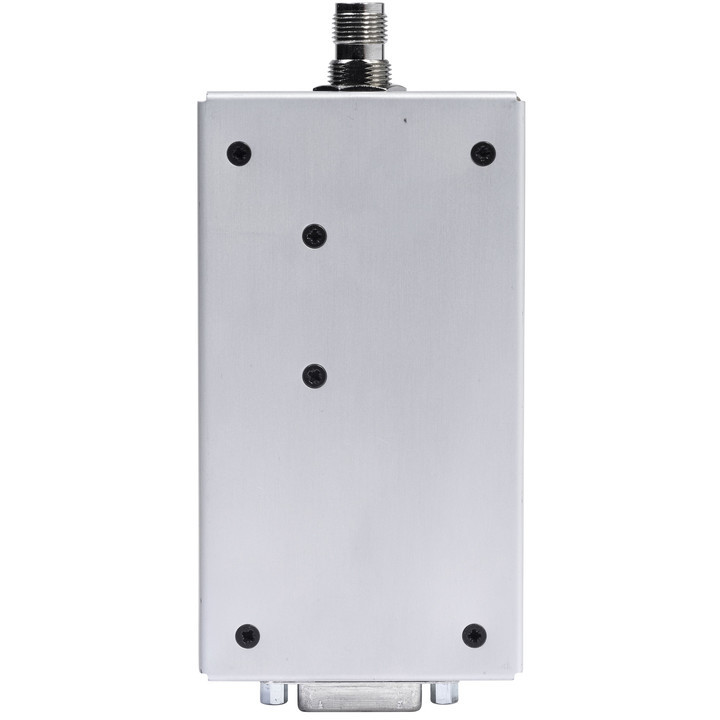

SATELLINE-M3 VHF is a VHF data radio transceiver module in a lightweight, easy to integrate enclosure. It has full compatibility with Satel’s standalone 3AS VHF line of radio modems. Completely self contained, this module meets applicable radio, EMC and electrical safety requirements without any additional enclosures.
| Frequency Range | 135 to 174 and 218 to 238 MHz |
|---|---|
| Tuning Range | 135 to 155, 138 to 160, 155 to 174 or 218 to 238 MHz |
| Carrier Power | 100 mW, 500 mW, 1 W, 5 W (software selectable) |
| Receiver Sensitvity | up to -115 dBm, depending on modulation and error correction (see product brochure) |
| Data Interface Speed | 1200 bps to 38.4kbps |
| Electrical Interface | RS-232, 422, 485 |
| Packet Throughput | 19.2kbps (25kHz channel), 9.6kbps (12.5kHz channel) |
| Interface Connector | D15 (data and power) |
| Antenna Connector | TNC female |
| Operating Voltage | +9-30 VDC |
| Power Consumption | 1.7W RX, 6.6W TX @ 1W, 22W TX @ 5W, 70mW standby |
| Operating Temperature Range | -25 °C to +55 °C |
| Size (H x W x D) | 114 x 61 x 22 mm |
| Weight | 265 g |
YM6000: SATELLINE-M3 VHF (only variation)
