SATELLINE-EASy 869

Description

SATELLINE-EASy 869 is a European license-free version of the SATELLINE-EASy modem. SATELINE-EASy 869 has 10 25 kHz channels between 869.400 to 869.650 MHz with up to 500mW output power. A model with display and push buttons allows accessing configuration settings directly on the radio, with no special software required. Status information like received signal strength and current settings are a glance away.

Advanced features of the EASy series like routing and repeaters are available for creating networks with long connections or many radios.

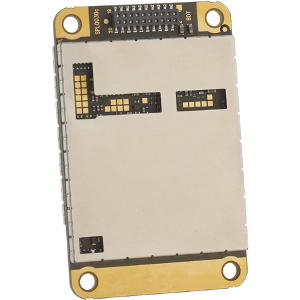

SATELLINE-EASy 869 is compatible with SATELLINE-M3-TR1 869 module, as well as the M3-TR8 module.



Additional information

Electrical Interface

RS-232 serial

Data Interface Speed

up to 38.4 kbps

Packet Throughput

19.2kbps

Frequency Range

869.400 to 869.650 MHz

Tuning Range

250 kHz

Channel Spacing

25 kHz fixed

Number of Channels

10

Receiver Sensitvity

-111 dBm

Carrier Power

10, 20, 50,100, 200, 500 mW

Interface Connector

D-15 (female)

Antenna Connector

TNC, 50 ohm, female

Operating Voltage

6 to 30 VDC

Size (H x W x D)

5.5 x 2.6 x 1.1 in (139 x 67 x 29 mm)

Weight

8.8 oz (250 g)

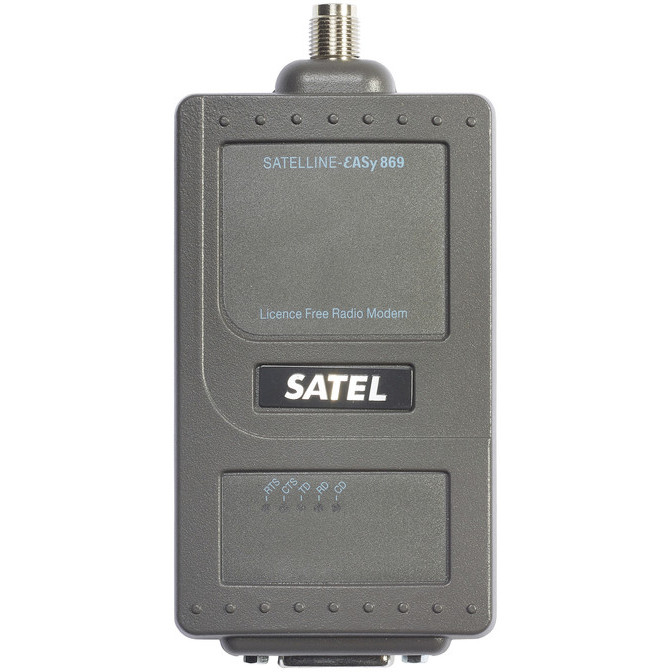

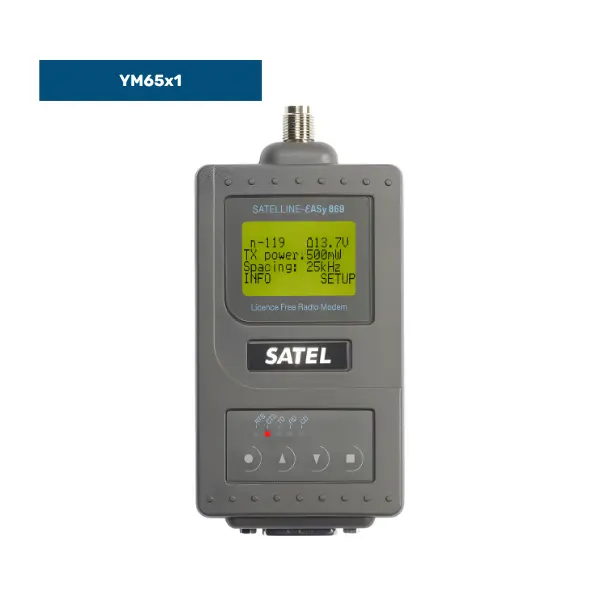

YM6501: SATELLINE-EASy 869 without display

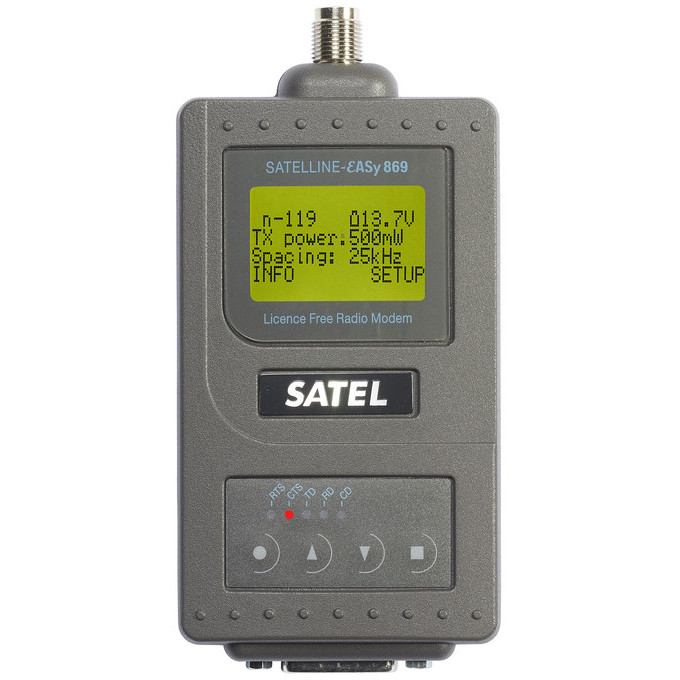

YM6551: SATELLINE-EASy 869 with display

SATELLINE EASy/EASy 869 Brochure

SATELLINE EASy/EASy 869 User Guide v9.2
