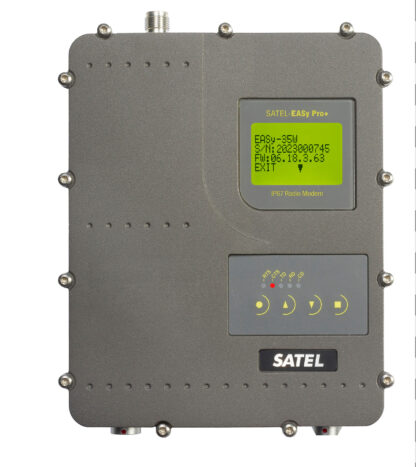

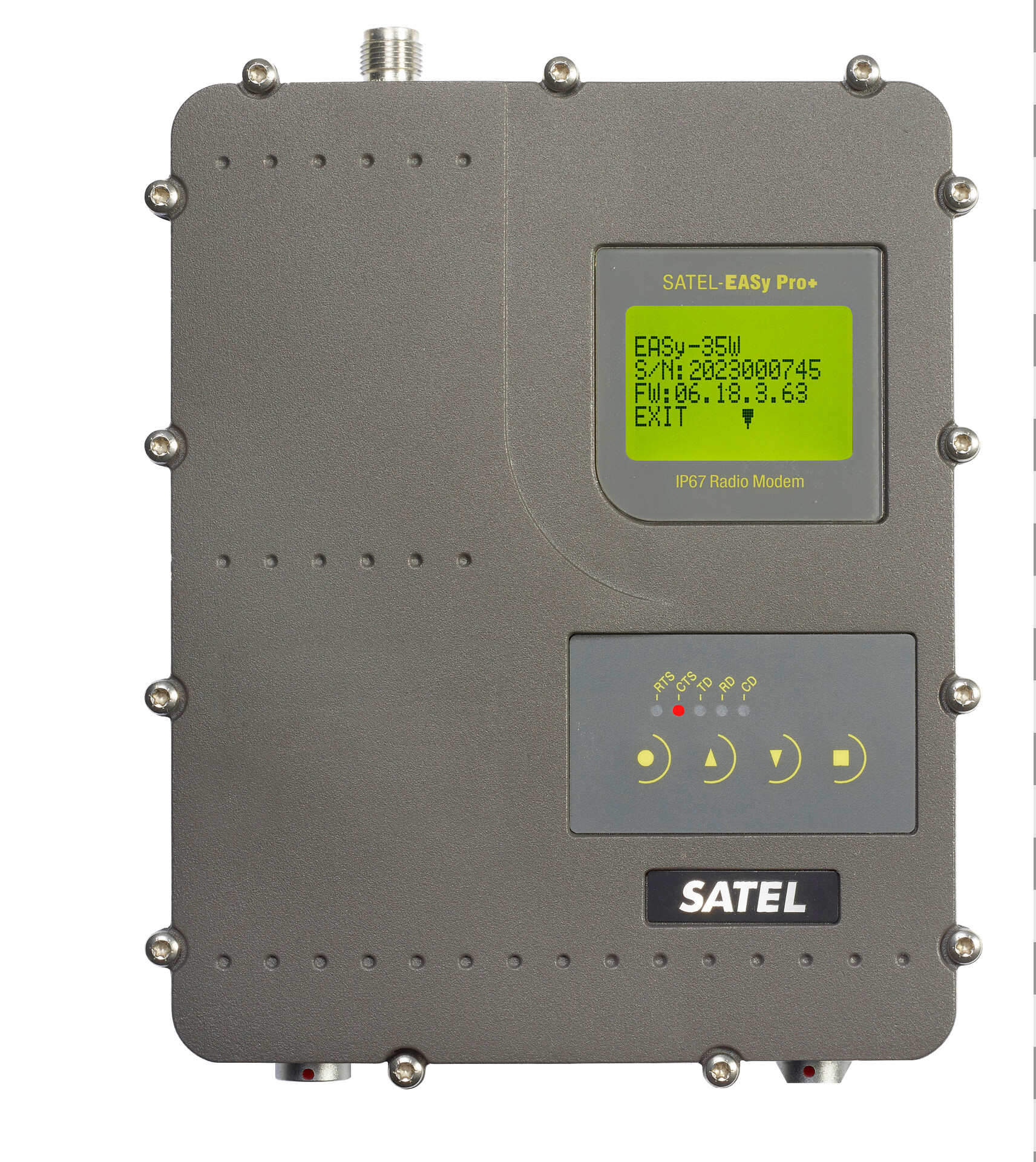

SATEL EASy Pro+

SKU: YM6823 Categories: ,

Description

Satel’s EASy Pro+ radio is the latest generation high power 400MHz long range radio. With a high 35W output power as well as the capability to transmit efficiently as low as 1W, the EASy Pro+ is perfect as a versatile base station radio for permanent installs as well as mobile or temporary uses, such as for surveying, construction, or agriculture.

It features multiple over the air modes, including GMSK, 4FSK, and the new 8FSK and 16FSK modes.

With this wide variety of capabilities, EASy Pro+ has a wide variety of compatibilities, including:

  • Earlier Satel radios, including 3AS, EASy, 3AS NMS and a wide variety of radio modules (TR1, TR3, TR4, TR4+, and more)
  • RTK receivers and radios from many OEMs, including
    • Leica
    • Topcon
    • Hemisphere
    • Trimble / Pacific Crest
    • and more

New to the EASy and EASy Pro+ are the following compatibility modes:

  • Satel 8FSK
  • Satel 16FSK
  • Trimmark 3
  • TrimTalk 8000/16000 kbps modes
  • Additional configuration options for Trimble/PacCrest Transparent EOT modes (GMSK and 4FSK), including ability to disable FEC and/or Scrambling
  • Satel 2ASxE
  • Satel 3AS NMS
  • RTCM SC135 (aka RTCM 13500.1), coming 2024

EASy Pro+ also features reduced power consumption at every power level compared to EASy Pro – this means longer battery life and less heat.

Additional information

Frequency Range

403 – 473 MHz

Channel Spacing

12.5 kHz / 20 kHz / 25 kHz (Selectable)

Type of Emission

F1D

Communication Mode

Half-Duplex

Tuning Range

70 MHz

Modulation

GMSK, 4FSK, 8FSK, 16FSK

Carrier Power

1W – 35W

Receiver Sensitvity

up to -115 dBm, depending on modulation and error correction (see product brochure)

Electrical Interface

RS-232/422/485, Ethernet, USB

Interface Connector

Lemo or ODU compatible, waterproof

Data Interface Speed

up to 115200 bps

Packet Throughput

up to 28.8kbps (25kHz channel), 14.4kbps (12.5kHz channel)

Operating Voltage

+ 9 to + 30 Vdc

Power Consumption

9-10W @ 1W Tx, 60-72W @ 25W Tx, 84-97W @ 35W Tx

Antenna Connector

TNC, 50 ohm, female

Construction

Aluminium housing

Size (H x W x D)

180 x 138 x 71 mm

Weight

1.4kg

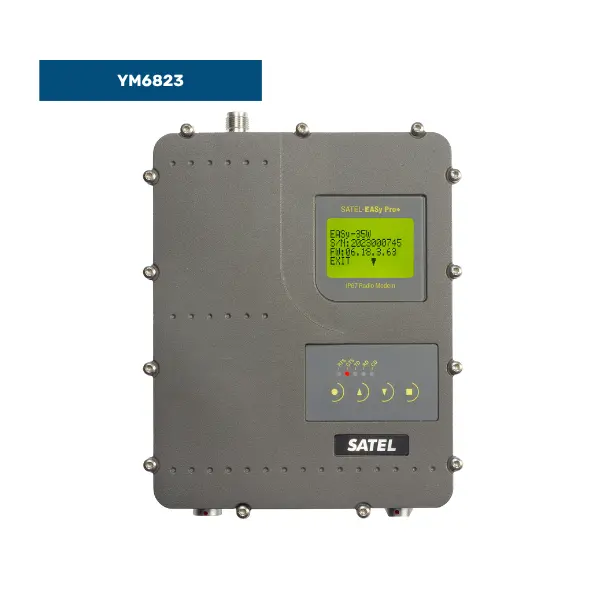

YM6823: Satel EASy Pro+

SATEL EASy Pro+ Datasheet

User Guide: User Guides/Manuals
