Description

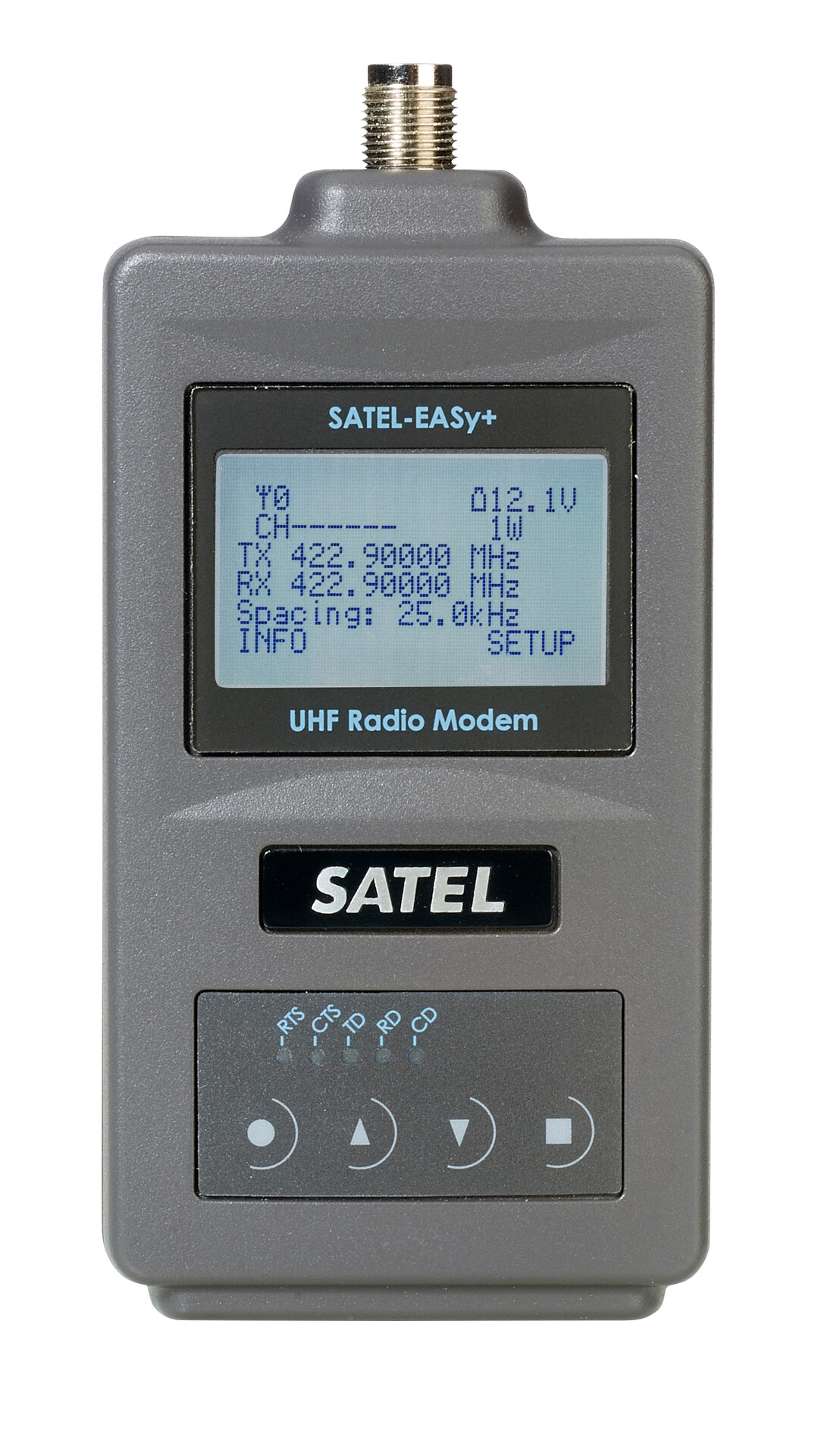

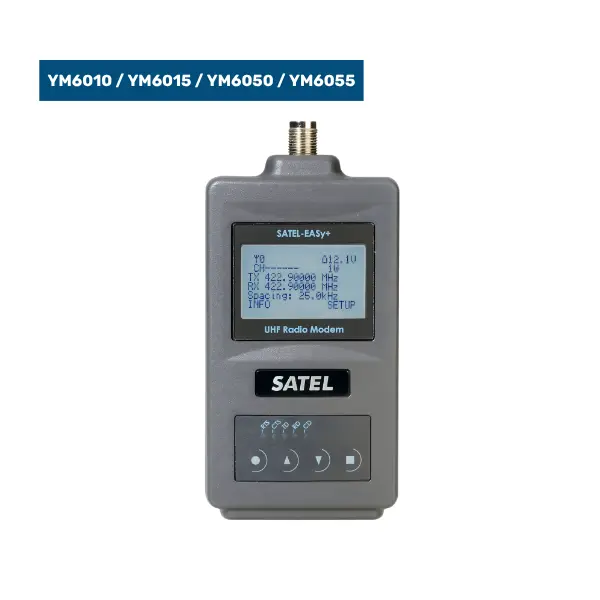

Satel’s EASy+ radio is the latest generation 400MHz long range radio. It features multiple over the air modes, including GMSK, 4FSK, and the new 8FSK and 16FSK modes.
The EASy+ includes a 1W transmitter, and is also suitable to be used as a receive only radio.
With this wide variety of capabilities, EASy+ has a wide variety of compatibilities, including:
- Earlier Satel radios, including 3AS, EASy, 3AS NMS and a wide variety of radio modules (TR1, TR3, TR4, TR4+, and more)
- RTK receivers and radios from many OEMs, including
- Leica
- Topcon
- Hemisphere
- Trimble / Pacific Crest
- and more
New to the EASy and EASy Pro+ are the following compatibility modes:
- Satel 8FSK
- Satel 16FSK
- Trimmark 3
- TrimTalk 8000/16000 kbps modes
- Additional configuration options for Trimble/PacCrest Transparent EOT modes (GMSK and 4FSK), including ability to disable FEC and/or Scrambling
- Satel 2ASxE
- Satel 3AS NMS
- RTCM SC135 (aka RTCM 13500.1), coming 2024
Technical Specifications
| Frequency Range | 403 – 473 MHz |
|---|---|
| Channel Spacing | 12.5 kHz / 20 kHz / 25 kHz (Selectable) |
| Type of Emission | F1D |
| Communication Mode | Half-Duplex |
| Tuning Range | 70 MHz |
| Modulation | GMSK, 4FSK, 8FSK, 16FSK |
| Carrier Power | 10 mW to 1 W |
| Receiver Sensitvity | up to -115 dBm, depending on modulation and error correction (see product brochure) |
| Electrical Interface | RS-232/422/485, Ethernet, USB |
| Interface Connector | D15, female |
| Data Interface Speed | up to 115200 bps |
| Packet Throughput | up to 28.8kbps (25kHz channel), 14.4kbps (12.5kHz channel) |
| Operating Voltage | 6 to 30 VDC |
| Power Consumption | 1.5 W typical (Rx), 5.5 W typical (Tx), 50mW (DTR sleep) |
| Antenna Connector | TNC, 50 ohm, female |
| Construction | Aluminium housing |
| Size (H x W x D) | 137 x 67 x 29 mm |
| Weight | <350g |
